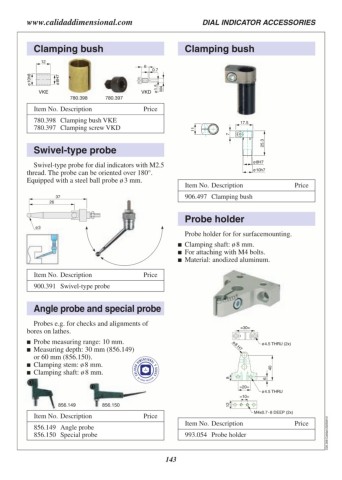

P. 143
www.calidaddimensional.com DIAL INDICATOR ACCESSORIES
Clamping bush Clamping bush
12 6 0.7
ø10h8 ø1.5
ø8H7 M4
VKE VKD
780.398 780.397 Price
Item No. Description
780.398 Clamping bush VKE 17.5
780.397 Clamping screw VKD
11
Swivel-type probe 7
25.3
Swivel-type probe for dial indicators with M2.5
thread. The probe can be oriented over 180°. ø8H7 Price
Equipped with a steel ball probe ø 3 mm. ø10h7
37 Item No. Description
26 906.497 Clamping bush
ø3 Probe holder
Probe holder for for surfacemounting.
Clamping shaft: ø 8 mm.
For attaching with M4 bolts.
Material: anodized aluminum.
Item No. Description Price
900.391 Swivel-type probe
Angle probe and special probe =30= ø4.5 THRU (2x)
ø8 H7
Probes e.g. for checks and alignments of
bores on lathes. 12 8
Probe measuring range: 10 mm. 6
Measuring depth: 30 mm (856.149) 40
or 60 mm (856.150). C05.309.Calidad.20250912
Clamping stem: ø 8 mm.
Clamping shaft: ø 8 mm.
=20= ø4.5 THRU
=10=
856.149 856.150
Item No. Description Price Item No. Description M4x0.7 - 8 DEEP (2x)
993.054 Probe holder
856.149 Angle probe Price
856.150 Special probe
143
