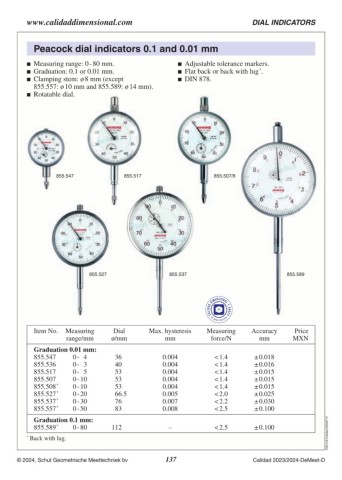

Peacock dial indicators 0.1 and 0.01 mm
Measuring range: 0 - 80 mm. Adjustable tolerance markers.
Graduation: 0.1 or 0.01 mm. Flat back or back with lug *.
Clamping stem: ø 8 mm (except DIN 878.
855.557: ø 10 mm and 855.589: ø 14 mm).
Rotatable dial.
855.547 855.517 855.507/8
855.527 855.537 855.589
Item No. Measuring Dial Max. hysteresis Measuring Accuracy Price
range/mm ø/mm mm force/N mm MXN
Graduation 0.01 mm: 36 0.004 < 1.4 ± 0.018
855.547 0 - 4 40 0.004 < 1.4 ± 0.016
855.536 0 - 3 53 0.004 < 1.4 ± 0.015
855.517 0 - 5 53 0.004 < 1.4 ± 0.015
855.507 0 - 10 53 0.004 < 1.4 ± 0.015
855.508 * 0 - 10 66.5 0.005 < 2.0 ± 0.025
855.527 * 0 - 20 76 0.007 < 2.2 ± 0.030
855.537 * 0 - 30 83 0.008 < 2.5 ± 0.100
855.557 * 0 - 50 112
Graduation 0.1 mm: – < 2.5 ± 0.100 C05.218.Calidad.20240712
855.589 * 0 - 80
* Back with lug.
