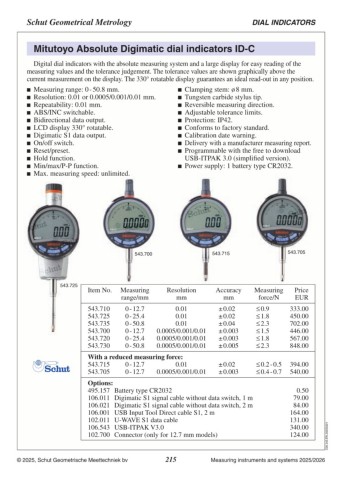

Schut Geometrical Metrology DIAL INDICATORS
Mitutoyo Absolute Digimatic dial indicators ID‑C
Digital dial indicators with the absolute measuring system and a large display for easy reading of the
measuring values and the tolerance judgement. The tolerance values are shown graphically above the
current measurement on the display. The 330° rotatable display guarantees an ideal read-out in any position.
Measuring range: 0 - 50.8 mm. 543.725 543.700
Resolution: 0.01 or 0.0005/0.001/0.01 mm.
Repeatability: 0.01 mm.
ABS/INC switchable.
Bidirectional data output.
LCD display 330° rotatable.
Digimatic S1 data output.
On/off switch.
Reset/preset.
Hold function.
Min/max/P‑P function.
Max. measuring speed: unlimited.
Clamping stem: ø 8 mm.
Tungsten carbide stylus tip.
Reversible measuring direction.
Adjustable tolerance limits.
Protection: IP42.
Conforms to factory standard.
Calibration date warning.
Delivery with a manufacturer measuring report.
Programmable with the free to download
USB-ITPAK 3.0 (simplified version).
Power supply: 1 battery type CR2032.
Item No. Measuring Resolution Accuracy Measuring Price
range/mm mm mm force/N EUR
543.710 0 - 12.7 0.01 ± 0.02 ≤ 0.9 343.00
543.725 0 - 25.4 0.01 ± 0.02 ≤ 1.8 464.00
543.735 0 - 50.8 0.01 ± 0.04 ≤ 2.3 724.00
543.700 0 - 12.7 0.0005/0.001/0.01 ± 0.003 ≤ 1.5 460.00
543.720 0 - 25.4 0.0005/0.001/0.01 ± 0.003 ≤ 1.8 585.00
543.730 0 - 50.8 0.0005/0.001/0.01 ± 0.005 ≤ 2.3 874.00
With a reduced measuring force: ≤ 0.2 - 0.5 406.00
≤ 0.4 - 0.7 557.00
543.715 0 - 12.7 0.01 ± 0.02
± 0.003 0.50
543.705 0 - 12.7 0.0005/0.001/0.01 83.00
89.00
Options: Battery type CR2032 169.00 C05.345.EN.20260702
495.157 Digimatic S1 signal cable without data switch, 1 m 131.00
106.011 Digimatic S1 signal cable without data switch, 2 m 351.00
106.021 USB Input Tool Direct cable S1, 2 m 128.00
106.001 U-WAVE S1 adapter cable
102.011 USB-ITPAK V3.0 Full version software 189.00
106.543 Connector (only for 12.7 mm models) 197.00
102.700 U-WAVE Transmitter mounting plate 380.00
102.670 U-WAVE fit transmitter
264.623 U-WAVE fit Bluetooth transmitter
264.627 U-WAVE receiver and software
102.810
