www.whp.cz DEMEET 3D CNC MEASURING MACHINES

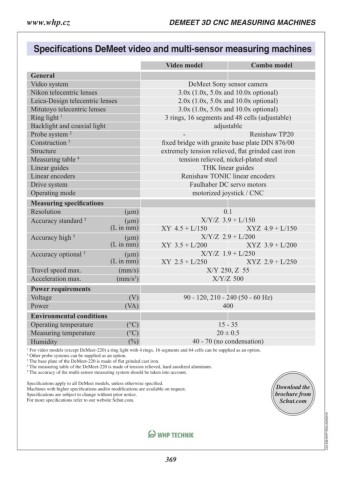

Specifications DeMeet video and multi-sensor measuring machines

Video model Combo model

General DeMeet Sony sensor camera
Video system 3.0x (1.0x, 5.0x and 10.0x optional)
Nikon telecentric lenses 2.0x (1.0x, 5.0x and 10.0x optional)
Leica-Design telecentric lenses 3.0x (1.0x, 5.0x and 10.0x optional)
Mitutoyo telecentric lenses 3 rings, 16 segments and 48 cells (adjustable)
Ring light 1
Backlight and coaxial light adjustable
Probe system 2 - Renishaw TP20
Construction 3
Structure tension relieved, nickel-plated steel
Measuring table 4 THK linear guides
Linear guides
Linear encoders Renishaw TONIC linear encoders
Drive system Faulhaber DC servo motors
Operating mode motorized joystick / CNC

Resolution (µm) 0.1
Accuracy standard 5
(µm) X/Y/Z 3.9 + L/150
Accuracy high 5 (L in mm)
XY 4.5 + L/150 XYZ 4.9 + L/150
Accuracy optional 5 (µm)
(L in mm) X/Y/Z 2.9 + L/200
Travel speed max.
Acceleration max. (µm) XY 3.5 + L/200 XYZ 3.9 + L/200
(L in mm)
X/Y/Z 1.9 + L/250
(mm/s)
(mm/s2) XY 2.5 + L/250 XYZ 2.9 + L/250

X/Y 250, Z 55

X/Y/Z 500

Power requirements (V) 90 - 120, 210 - 240 (50 - 60 Hz)
Voltage (VA) 400

Power

Environmental conditions

Operating temperature (°C) 15 - 35

Measuring temperature (°C) 20 ± 0.5

Humidity (%) 40 - 70 (no condensation)

1 For video models (except DeMeet-220) a ring light with 4 rings, 16 segments and 64 cells can be supplied as an option.
2 Other probe systems can be supplied as an option.
3 The base plate of the DeMeet-220 is made of flat grinded cast iron.
4 The measuring table of the DeMeet-220 is made of tension relieved, hard anodized aluminum.
5 The accuracy of the multi-sensor measuring system should be taken into account.

Specifications apply to all DeMeet models, unless otherwise specified. Download the
Machines with higher specifications and/or modifications are available on request. brochure from
Specifications are subject to change without prior notice.
For more specifications refer to our website Schut.com. Schut.com
