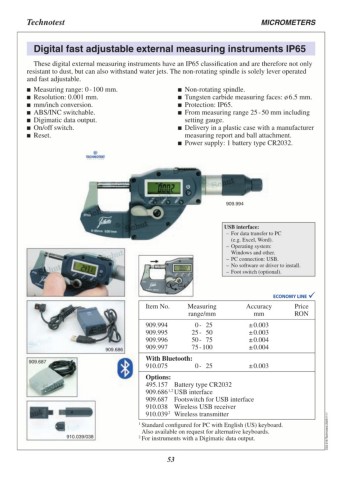

Page 53 - Schut Catalog
P. 53
Technotest MICROMETERS
Digital fast adjustable external measuring instruments IP65
These digital external measuring instruments have an IP65 classification and are therefore not only
resistant to dust, but can also withstand water jets. The non-rotating spindle is solely lever operated
and fast adjustable.
Measuring range: 0 - 100 mm. Non-rotating spindle.
Resolution: 0.001 mm. Tungsten carbide measuring faces: ø 6.5 mm.
mm/inch conversion. Protection: IP65.
ABS/INC switchable. From measuring range 25 - 50 mm including
Digimatic data output.
On/off switch. setting gauge.
Reset. Delivery in a plastic case with a manufacturer
measuring report and ball attachment.
Power supply: 1 battery type CR2032.
909.994
USB interface:
– For data transfer to PC
(e.g. Excel, Word).
– Operating system:
Windows and other.
– PC connection: USB.
– No software or driver to install.
– Foot switch (optional).
Item No. Measuring Accuracy Price
range/mm mm RON
909.994 0 - 25 ± 0.003
909.995 25 - 50 ± 0.003
909.996 50 - 75 ± 0.004
909.997 75 - 100 ± 0.004
909.686
909.687 910.039/038 With Bluetooth: 0 - 25 ± 0.003
910.075
Options: C03.319.Technotest.20251111
495.157 Battery type CR2032
909.686 1,2 USB interface
909.687 Footswitch for USB interface
910.038 Wireless USB receiver
910.039 2 Wireless transmitter
1 Standard configured for PC with English (US) keyboard.
Also available on request for alternative keyboards.
2 For instruments with a Digimatic data output.
53
