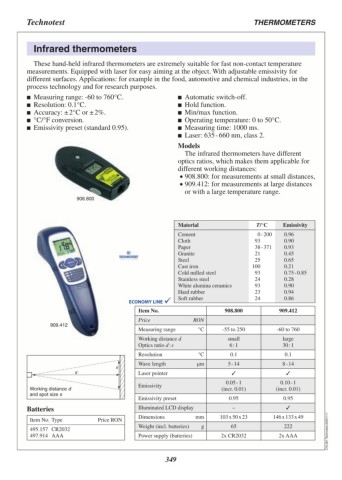

Page 349 - Schut Catalog

Technotest THERMOMETERS

Infrared thermometers

These hand-held infrared thermometers are extremely suitable for fast non-contact temperature
meas­ure­ments. Equipped with laser for easy aiming at the object. With adjustable emissivity for
different surfaces. Applications: for example in the food, automotive and chemical industries, in the
process technology and for research purposes.

 Measuring range: -60 to 760°C.  Automatic switch-off.
 Resolution: 0.1°C.  Hold function.
 Accuracy: ± 2°C or ± 2%.  Min/max function.
 °C/°F conversion.  Operating temperature: 0 to 50°C.
 Emissivity preset (standard 0.95).  Measuring time: 1000 ms.
 Laser: 635 - 660 nm, class 2.

Models
The infrared thermometers have different

optics ratios, which makes them applicable for
different working distances:
• 908.800: for measurements at small distances,
• 909.412: for measurements at large distances

or with a large temperature range.

908.800

Material T/°C Emissivity

Cement 0 - 200 0.96
Cloth 93 0.90
Paper 38 - 371 0.93
Granite 21 0.45
Steel 25 0.65
Cast iron 100 0.21
Cold milled steel 93 0.75 - 0.85
Stainless steel 24 0.28
White alumina ceramics 93 0.90
Hard rubber 23 0.94
Soft rubber 24 0.86

909.412 s Item No. RON 908.800 909.412
Price °C
d Price RON Measuring range -55 to 250 -60 to 760
Working distance d Working distance d °C small large
and spot size s Optics ratio d : s µm 6 : 1 30 : 1
Resolution 0.1 0.1
Batteries Wave length 5 - 14 8 - 14
Laser pointer ✓ ✓
Item No. Type 0.05 - 1 0.10 - 1
495.157 CR2032 Emissivity
497.914 AAA (incr. 0.01) (incr. 0.01)
Emissivity preset 0.95 0.95
– ✓
Illuminated LCD display
103 x 50 x 23 146 x 133 x 49
Dimensions mm 65 222 C10.301.Technotest.20251111

Weight (incl. batteries) g 2x CR2032 2x AAA

Power supply (batteries)

349
