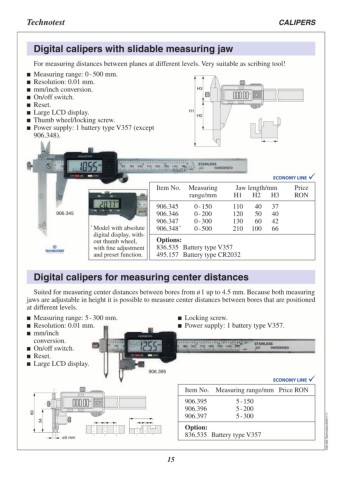

Page 15 - Schut Catalog
P. 15
Technotest CALIPERS
Digital calipers with slidable measuring jaw
For measuring distances between planes at different levels. Very suitable as scribing tool!
Measuring range: 0 - 500 mm. H3 mm
Resolution: 0.01 mm. H1
mm/inch conversion.
On/off switch. H2
Reset.
Large LCD display.
Thumb wheel/locking screw.
Power supply: 1 battery type V357 (except
906.348).
Item No. Measuring Jaw length/mm Price
range/mm H1 H2 H3 RON
906.345 906.345 0 - 150 110 40 37
906.346 0 - 200 120 50 40
* Model with absolute 906.347 0 - 300 130 60 42
digital display, with 906.348 * 0 - 500 210 100 66
out thumb wheel,
with fine adjustment Options:
and preset function. 836.535 Battery type V357
495.157 Battery type CR2032
Digital calipers for measuring center distances
Suited for measuring center distances between bores from ø 1 up to 4.5 mm. Because both measuring
jaws are adjustable in height it is possible to measure center distances between bores that are positioned
at different levels.
Measuring range: 5 - 300 mm. Locking screw.
Resolution: 0.01 mm. Power supply: 1 battery type V357.
mm/inch
906.395
conversion.
On/off switch.
Reset.
Large LCD display.
Item No. Measuring range/mm Price RON
mm 906.395 5 - 150
906.396 5 - 200
60 906.397 5 - 300
34
C02.204.Technotest.20251111
ø5 mm Option:
836.535 Battery type V357
15
