www.tauricon.sk DIAL INDICATOR STANDS

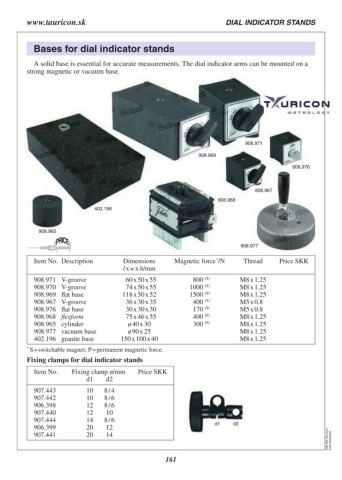

Bases for dial indicator stands

A solid base is essential for accurate measurements. The dial indicator arms can be mounted on a
strong magnetic or vacuum base.

908.971

908.969

908.976

908.967

908.968

402.196

908.965

908.977

Item No. Description Dimensions Magnetic force */N Thread Price SKK
l x w x h/mm 800 (S) M8 x 1.25
1000 (S) M8 x 1.25
908.971 V‑groove 60 x 50 x 55 1500 (S) M8 x 1.25
908.970 V‑groove 74 x 50 x 55 400 (S) M5 x 0.8
908.969 flat base 118 x 50 x 52 170 (S) M5 x 0.8
908.967 V‑groove 36 x 30 x 35 400 (P) M8 x 1.25
908.976 flat base 30 x 30 x 30 300 (P) M8 x 1.25
908.968 flexform 75 x 46 x 55 M8 x 1.25
908.965 cylinder d1 M8 x 1.25
908.977 vacuum base ø 40 x 30
402.196 granite base ø 90 x 25 d2
150 x 100 x 40

* S = switchable magnet; P = permanent magnetic force.

Fixing clamps for dial indicator stands

Item No. Fixing clamp ø/mm Price SKK
d1 d2

907.443 10 8 / 4 C06.305.Tauricon-
907.442 10 8 / 6 ENG.20240422
906.398 12 8 / 6
907.440 12 10
907.444 14 8 / 6
906.399 20 12
907.441 20 14

161
