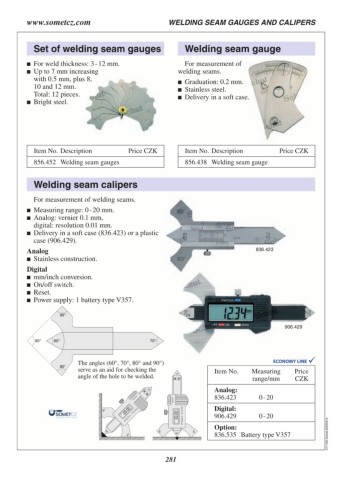

www.sometcz.com WELDING SEAM GAUGES AND CALIPERS

Set of welding seam gauges Welding seam gauge

 For weld thickness: 3 - 12 mm. For measurement of
 Up to 7 mm increasing welding seams.
 Graduation: 0.2 mm.
with 0.5 mm, plus 8,  Stainless steel.
10 and 12 mm.  Delivery in a soft case.
Total: 12 pieces.
 Bright steel.

Item No. Description Price CZK Item No. Description Price CZK
856.438 Welding seam gauge
856.452 Welding seam gauges

Welding seam calipers 836.423
906.429
For measurement of welding seams.
 Measuring range: 0 - 20 mm.
 Analog: vernier 0.1 mm,

digital: resolution 0.01 mm.
 Delivery in a soft case (836.423) or a plastic

case (906.429).
Analog
 Stainless construction.
Digital
 mm/inch conversion.
 On/off switch.
 Reset.
 Power supply: 1 battery type V357.

90°

90° 60° 70°

The angles (60°, 70°, 80° and 90°) 70° Item No. Measuring Price
80° serve as an aid for checking the range/mm CZK
angle of the hole to be welded.

70°mm/inchmm/inch Analog: 0 - 20
60° 836.423

mm00.00 ZERO ZERO Digital:
906.429
90° ON mm 00.00

OFF ON 0 - 20 C17.203.Somet.20250410

OFF

90° 60° 80° Option:
836.535 Battery type V357
80°

281
