www.sometcz.com V-BLOCKS

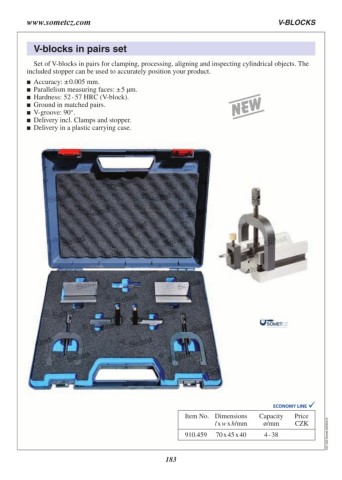

V‑blocks in pairs set
Set of V-blocks in pairs for clamping, processing, aligning and inspecting cylindrical objects. The
included stopper can be used to accurately position your product.
Accuracy: ± 0.005 mm.
Parallelism measuring faces: ± 5 µm.
Hardness: 52 - 57 HRC (V‑block).
Ground in matched pairs.
V‑groove: 90°.
Delivery incl. Clamps and stopper.
Delivery in a plastic carrying case.
Item No. Dimensions Capacity Price C07.322.Somet.20250410
l x w x h/mm ø/mm CZK
4 - 38
910.459 70 x 45 x 40
