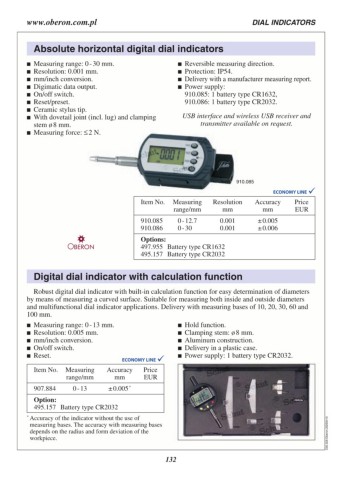

www.oberon.com.pl DIAL INDICATORS
Absolute horizontal digital dial indicators
Measuring range: 0 - 30 mm. Reversible measuring direction.
Resolution: 0.001 mm. Protection: IP54.
mm/inch conversion. Delivery with a manufacturer measuring report.
Digimatic data output. Power supply:
On/off switch.
Reset/preset. 910.085: 1 battery type CR1632,
Ceramic stylus tip. 910.086: 1 battery type CR2032.
With dovetail joint (incl. lug) and clamping USB interface and wireless USB receiver and
stem ø 8 mm. transmitter available on request.
Measuring force: ≤ 2 N.
910.085
Item No. Measuring Resolution Accuracy Price
range/mm mm mm EUR
910.085 0 - 12.7 0.001 ± 0.005
910.086 0 - 30 0.001 ± 0.006
Options:
497.955 Battery type CR1632
495.157 Battery type CR2032
Digital dial indicator with calculation function
Robust digital dial indicator with built-in calculation function for easy determination of diameters
by means of measuring a curved surface. Suitable for measuring both inside and outside diameters
and multifunctional dial indicator applications. Delivery with measuring bases of 10, 20, 30, 60 and
100 mm.
Measuring range: 0 - 13 mm. Hold function.
Resolution: 0.005 mm. Clamping stem: ø 8 mm.
mm/inch conversion. Aluminum construction.
On/off switch. Delivery in a plastic case.
Reset. Power supply: 1 battery type CR2032.
Item No. Measuring Accuracy Price
range/mm mm EUR
907.884 0 - 13 ± 0.005 *
Option:
495.157 Battery type CR2032
* Accuracy of the indicator without the use of C05.329.Oberon.20250410
measuring bases. The accuracy with measuring bases
depends on the radius and form deviation of the
workpiece.
