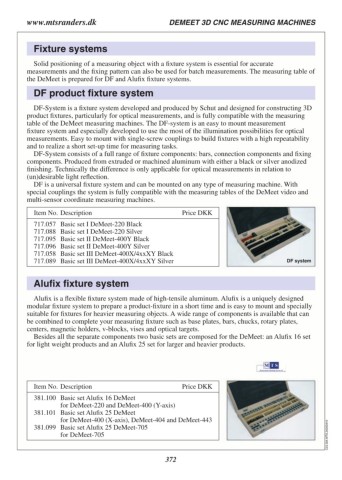

www.mtsranders.dk DEMEET 3D CNC MEASURING MACHINES

Fixture systems

Solid positioning of a measuring object with a fixture system is essential for accurate
measurements and the fixing pattern can also be used for batch measurements. The measuring table of
the DeMeet is prepared for DF and Alufix fixture systems.

DF product fixture system

DF-System is a fixture system developed and produced by Schut and designed for constructing 3D
product fixtures, particularly for optical measurements, and is fully compatible with the measuring
table of the DeMeet measuring machines. The DF-system is an easy to mount measurement
fixture system and especially developed to use the most of the illumination possibilities for optical
measurements. Easy to mount with single-screw couplings to build fixtures with a high repeatability
and to realize a short set-up time for measuring tasks.

DF-System consists of a full range of fixture components: bars, connection components and fixing
components. Produced from extruded or machined aluminum with either a black or silver anodized
finishing. Technically the difference is only applicable for optical measurements in relation to
(un)desirable light reflection.

DF is a universal fixture system and can be mounted on any type of measuring machine. With
special couplings the system is fully compatible with the measuring tables of the DeMeet video and
multi-sensor coordinate measuring machines.

Item No. Description Price DKK
717.057 Basic set I DeMeet‑220 Black
717.088 Basic set I DeMeet‑220 Silver DF system
717.095 Basic set II DeMeet‑400Y Black
717.096 Basic set II DeMeet‑400Y Silver
717.058 Basic set III DeMeet‑400X/4xxXY Black
717.089 Basic set III DeMeet‑400X/4xxXY Silver

Alufix fixture system

Alufix is a flexible fixture system made of high-tensile aluminum. Alufix is a uniquely designed
modular fixture system to prepare a product-fixture in a short time and is easy to mount and specially
suitable for fixtures for heavier measuring objects. A wide range of components is available that can
be combined to complete your measuring fixture such as base plates, bars, chucks, rotary plates,
centers, magnetic holders, v-blocks, vises and optical targets.

Besides all the separate components two basic sets are composed for the DeMeet: an Alufix 16 set
for light weight products and an Alufix 25 set for larger and heavier products.

Item No. Description Price DKK

381.100 Basic set Alufix 16 DeMeet C23.304.MTS.20250410
for DeMeet‑220 and DeMeet‑400 (Y‑axis)

381.101 Basic set Alufix 25 DeMeet
for DeMeet‑400 (X‑axis), DeMeet‑404 and DeMeet‑443

381.099 Basic set Alufix 25 DeMeet‑705
for DeMeet‑705

372
