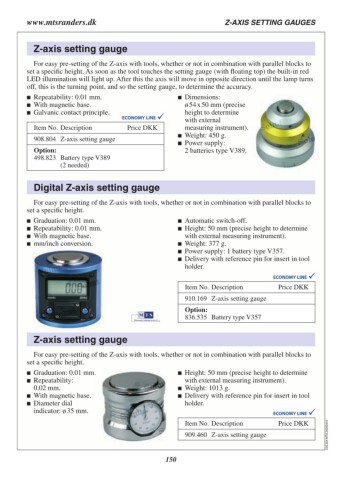

P. 150
www.mtsranders.dk Z-AXIS SETTING GAUGES
Z-axis setting gauge
For easy pre-setting of the Z-axis with tools, whether or not in combination with parallel blocks to
set a specific height. As soon as the tool touches the setting gauge (with floating top) the built-in red
LED illumination will light up. After this the axis will move in opposite direction until the lamp turns
off, this is the turning point, and so the setting gauge, to determine the accuracy.
Repeatability: 0.01 mm. Price DKK Dimensions:
With magnetic base. ø 54 x 50 mm (precise
Galvanic contact principle. height to determine
with external
Item No. Description measuring instrument).
908.804 Z-axis setting gauge
Option: Weight: 450 g.
498.823 Battery type V389 Power supply:
(2 needed) 2 batteries type V389.
Digital Z-axis setting gauge
For easy pre-setting of the Z-axis with tools, whether or not in combination with parallel blocks to
set a specific height.
Graduation: 0.01 mm. Automatic switch-off.
Repeatability: 0.01 mm. Height: 50 mm (precise height to determine
With magnetic base.
mm/inch conversion. with external measuring instrument).
Weight: 377 g.
Power supply: 1 battery type V357.
Delivery with reference pin for insert in tool
holder.
Item No. Description Price DKK
910.169 Z-axis setting gauge
Option:
836.535 Battery type V357
Z-axis setting gauge
For easy pre-setting of the Z-axis with tools, whether or not in combination with parallel blocks to
set a specific height.
Graduation: 0.01 mm. Height: 50 mm (precise height to determine
Repeatability: with external measuring instrument).
0.02 mm. Weight: 1013 g.
With magnetic base. Delivery with reference pin for insert in tool
Diameter dial
holder.
indicator: ø 35 mm.
Item No. Description Price DKK C05.324.MTS.20250410
909.460 Z-axis setting gauge
150
