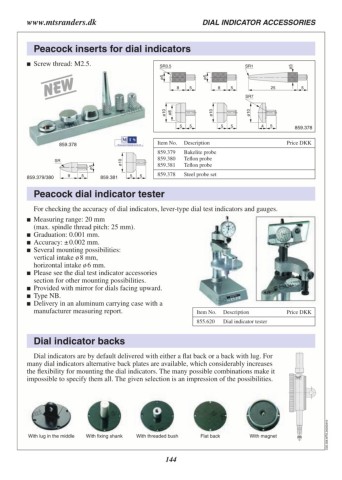

www.mtsranders.dk DIAL INDICATOR ACCESSORIES

Peacock inserts for dial indicators

 Screw thread: M2.5. SR3.5 SR1
ø10 ø5
ø885 85 25 5

ø5 SR7
ø10
ø10

ø5

55 55 45 859.378

859.378 Item No. Description Price DKK

SR ø5 859.379 Bakelite probe
ø10 859.380 Teflon probe
859.381 Teflon probe
859.379/380 95 859.381 55
859.378 Steel probe set

Peacock dial indicator tester

For checking the accuracy of dial indicators, lever-type dial test indicators and gauges.

 Measuring range: 20 mm Item No. Description Price DKK
(max. spindle thread pitch: 25 mm).

 Graduation: 0.001 mm.
 Accuracy: ± 0.002 mm.
 Several mounting possibilities:

vertical intake ø 8 mm,
horizontal intake ø 6 mm.
 Please see the dial test indicator accessories
section for other mounting possibilities.
 Provided with mirror for dials facing upward.
 Type NB.
 Delivery in an aluminum carrying case with a
manufacturer measuring report.

855.620 Dial indicator tester

Dial indicator backs

Dial indicators are by default delivered with either a flat back or a back with lug. For
many dial indicators alternative back plates are available, which considerably increases
the flexibility for mount­ing the dial indicators. The many possible combinations make it
impossible to specify them all. The given selection is an impression of the possibilities.

With lug in the middle With fixing shank With threaded bush Flat back With magnet C05.356.MTS.20250410

144
