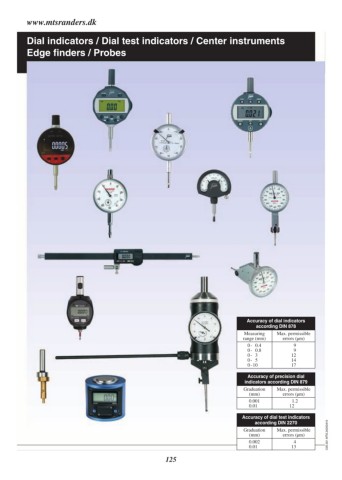

Dial indicators / Dial test indicators / Center instruments
Edge finders / Probes
Accuracy of dial indicators
according DIN 878
Measuring Max. permissible
range (mm) errors (µm)
0 - 0.4 9
0 - 0.8 9
0 - 3 12
0 - 5 14
0 - 10 17
Accuracy of precision dial
indicators according DIN 879
Graduation Max. permissible
(mm) errors (µm)
0.001 1.2
0.01 12
Accuracy of dial test indicators C05.001.MTS.20250410
according DIN 2270
Graduation Max. permissible
(mm) errors (µm)
0.002 4
0.01 13
