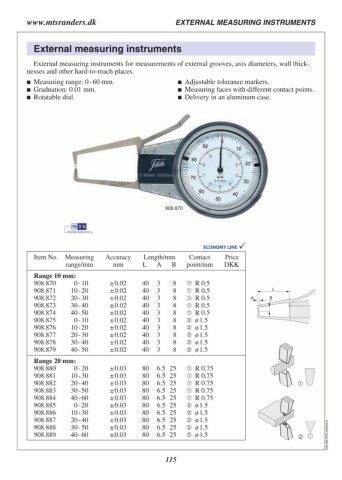

Page 115 - Schut Catalog
P. 115
www.mtsranders.dk EXTERNAL MEASURING INSTRUMENTS
External measuring instruments
External measuring instruments for measurements of external grooves, axis diameters, wall thick
nesses and other hard‑to‑reach places.
Measuring range: 0 - 60 mm. Adjustable tolerance markers.
Graduation: 0.01 mm. Measuring faces with different contact points.
Rotatable dial. Delivery in an aluminum case.
908.870
Item No. Measuring Accuracy Length/mm Contact Price
range/mm mm L A B point/mm DKK
Range 10 mm: ± 0.02 40 3 8 R 0.5 A L
908.870 0 - 10 ± 0.02 40 3 8 R 0.5 B
908.871 10 - 20 ± 0.02 40 3 8 R 0.5
908.872 20 - 30 ± 0.02 40 3 8 R 0.5
908.873 30 - 40 ± 0.02 40 3 8 R 0.5
908.874 40 - 50 ± 0.02 40 3 8 ø 1.5
908.875 0 - 10 ± 0.02 40 3 8 ø 1.5
908.876 10 - 20 ± 0.02 40 3 8 ø 1.5
908.877 20 - 30 ± 0.02 40 3 8 ø 1.5
908.878 30 - 40 ± 0.02 40 3 8 ø 1.5
908.879 40 - 50
Range 20 mm: ± 0.03 80 6.5 25 R 0.75 C04.309.MTS.20250410
908.880 0 - 20 ± 0.03 80 6.5 25 R 0.75
908.881 10 - 30 ± 0.03 80 6.5 25 R 0.75
908.882 20 - 40 ± 0.03 80 6.5 25 R 0.75
908.883 30 - 50 ± 0.03 80 6.5 25 R 0.75
908.884 40 - 60 ± 0.03 80 6.5 25 ø 1.5
908.885 0 - 20 ± 0.03 80 6.5 25 ø 1.5
908.886 10 - 30 ± 0.03 80 6.5 25 ø 1.5
908.887 20 - 40 ± 0.03 80 6.5 25 ø 1.5
908.888 30 - 50 ± 0.03 80 6.5 25 ø 1.5
908.889 40 - 60
