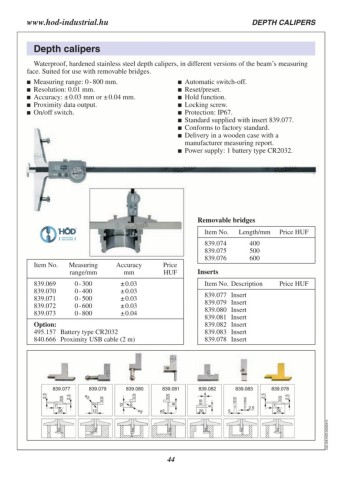

Page 44 - Schut Catalog
P. 44
www.hod-industrial.hu DEPTH CALIPERS
Depth calipers
Waterproof, hardened stainless steel depth calipers, in different versions of the beam’s measuring
face. Suited for use with removable bridges.
Measuring range: 0 - 800 mm. Automatic switch-off.
Resolution: 0.01 mm. Reset/preset.
Accuracy: ± 0.03 mm or ± 0.04 mm. Hold function.
Proximity data output. Locking screw.
On/off switch. Protection: IP67.
Standard supplied with insert 839.077.
Conforms to factory standard.
Delivery in a wooden case with a
manufacturer measuring report.
Power supply: 1 battery type CR2032.
Removable bridges
Item No. Length/mm Price HUF
Price HUF
Item No. Measuring Accuracy Price 839.074 400
range/mm mm HUF 839.075 500
839.076 600
Inserts
839.069 0 - 300 ± 0.03 Item No. Description
839.070 0 - 400 ± 0.03 839.077 Insert
839.071 0 - 500 ± 0.03 839.079 Insert
839.072 0 - 600 ± 0.03 839.080 Insert
839.073 0 - 800 ± 0.04 839.081 Insert
839.082 Insert
Option: 839.083 Insert
495.157 Battery type CR2032 839.078 Insert
840.666 Proximity USB cable (2 m)
839.077 839.079 839.080 839.081 839.082 839.083 839.078
12 4 5 2.5
2.57 ø5 7
2.526 20 26
12ø5 ø2
8
6
2.5
2.5
