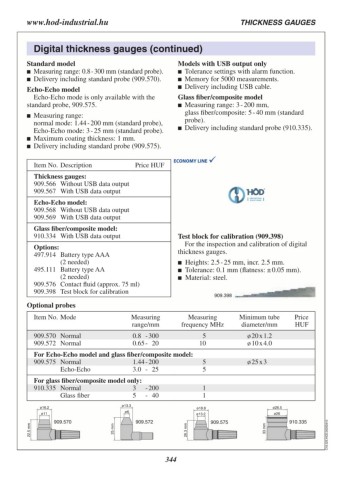

Page 344 - Schut Catalog

www.hod-industrial.hu THICKNESS GAUGES

Digital thickness gauges (continued)

Standard model Models with USB output only
 Measuring range: 0.8 - 300 mm (standard probe).  Tolerance settings with alarm function.
 Delivery including standard probe (909.570).  Memory for 5000 measurements.
Echo-Echo model  Delivery including USB cable.
Glass fiber/composite model
Echo-Echo mode is only available with the  Measuring range: 3 - 200 mm,
standard probe, 909.575.
 Measuring range: glass fiber/composite: 5 - 40 mm (standard
probe).
normal mode: 1.44 - 200 mm (standard probe),  Delivery including standard probe (910.335).
Echo-Echo mode: 3 - 25 mm (standard probe).
 Maximum coating thickness: 1 mm.
 Delivery including standard probe (909.575).

Item No. Description Price HUF

Thickness gauges:
909.566 Without USB data output
909.567 With USB data output

Echo-Echo model:
909.568 Without USB data output
909.569 With USB data output

Glass fiber/composite model: Test block for calibration (909.398)
910.334 With USB data output For the inspection and calibration of digital
Options:
497.914 Battery type AAA thickness gauges.
 Heights: 2.5 - 25 mm, incr. 2.5 mm.
(2 needed)  Tolerance: 0.1 mm (flatness: ± 0.05 mm).
495.111 Battery type AA  Material: steel.

(2 needed) 909.398
909.576 Contact fluid (approx. 75 ml)
909.398 Test block for calibration

Optional probes

Item No. Mode Measuring Measuring Minimum tube Price
range/mm frequency MHz diameter/mm HUF

909.570 Normal 0.8 - 300 5 ø 20 x 1.2
909.572 Normal 0.65 - 20 10 ø 10 x 4.0

For Echo-Echo model and glass fiber/composite model: ø 25 x 3
909.575 Normal 1.44 - 200 5
Echo-Echo 3.0 - 25 5

For glass fiber/composite model only:
910.335 Normal 3 - 200 1
Glass fiber 5 - 40 1

ø16.2 ø13.3 ø18.8 ø26.5
ø11 ø6 ø13.2 ø26

909.570 909.572 909.575 910.335
22.5 mm
25 mm

26.3 mm
33 mm

C18.325.HOD.20250410

344
