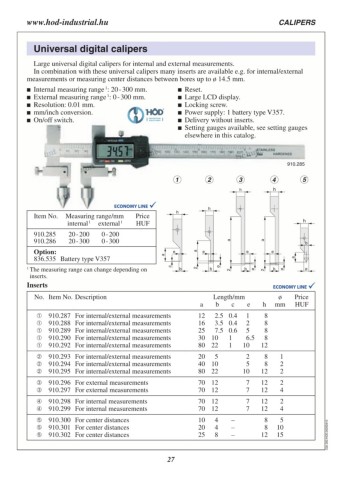

Page 27 - Schut Catalog

www.hod-industrial.hu CALIPERS

Universal digital calipers

Large universal digital calipers for internal and external measurements.
In combination with these universal calipers many inserts are available e.g. for internal/external
measurements or measuring center distances between bores up to ø 14.5 mm.

 Internal measuring range 1: 20 - 300 mm.  Reset.
 External measuring range 1: 0 - 300 mm.  Large LCD display.
 Resolution: 0.01 mm.  Locking screw.
 mm/inch conversion.  Power supply: 1 battery type V357.
 On/off switch.  Delivery without inserts.
 Setting gauges available, see setting gauges

elsewhere in this catalog.

910.285

1 2 3 45

hh

h h

Item No. Measuring range/mm Price h
internal 1 external 1 HUF b
ø
910.285 20 - 200 0 - 200 ea
910.286 20 - 300 0 - 300 c Price
Option: 2a HUF
836.535 Battery type V357 ø
2a
ø
2a
ø

a
1 The measuring range can change depending on b e ee
inserts. b bb

Inserts

No. Item No. Description Length/mm ø
a b c e h mm

 910.287 For internal/external measurements 12 2.5 0.4 1 8
 910.288 For internal/external measurements 16 3.5 0.4 2 8
 910.289 For internal/external measurements 25 7.5 0.6 5 8
 910.290 For internal/external measurements 30 10 1 6.5 8
 910.292 For internal/external measurements 80 22 1 10 12

 910.293 For internal/external measurements 20 5 2 8 1
 910.294 For internal/external measurements 40 10 5 8 2
 910.295 For internal/external measurements 80 22 10 12 2

 910.296 For external measurements 70 12 7 12 2
 910.297 For external measurements 70 12 7 12 4

 910.298 For internal measurements 70 12 7 12 2
 910.299 For internal measurements 70 12 7 12 4

 910.300 For center distances 10 4 – 8 5 C02.350.HOD.20250410
 910.301 For center distances 20 4 – 8 10
 910.302 For center distances 25 8 – 12 15
