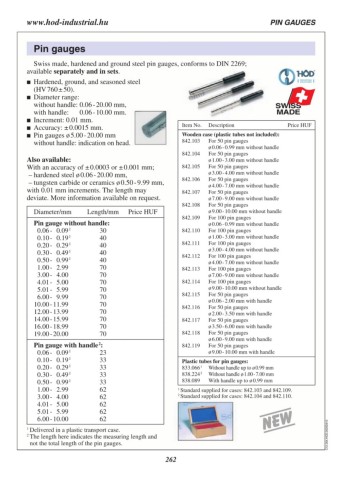

Page 262 - Schut Catalog
P. 262
www.hod-industrial.hu PIN GAUGES
Pin gauges
Swiss made, hardened and ground steel pin gauges, conforms to DIN 2269;
available separately and in sets.
Hardened, ground, and seasoned steel Item No. Description Price HUF
(HV 760 ± 50).
Wooden case (plastic tubes not included):
Diameter range: 842.103 For 50 pin gauges
without handle: 0.06 - 20.00 mm,
with handle: 0.06 - 10.00 mm. ø 0.06 - 0.99 mm without handle
842.104 For 50 pin gauges
Increment: 0.01 mm.
Accuracy: ± 0.0015 mm. ø 1.00 - 3.00 mm without handle
Pin gauges ø 5.00 - 20.00 mm 842.105 For 50 pin gauges
without handle: indication on head. ø 3.00 - 4.00 mm without handle
842.106 For 50 pin gauges
Also available:
With an accuracy of ± 0.0003 or ± 0.001 mm; ø 4.00 - 7.00 mm without handle
– hardened steel ø 0.06 - 20.00 mm, 842.107 For 50 pin gauges
– tungsten carbide or ceramics ø 0.50 - 9.99 mm,
with 0.01 mm increments. The length may ø 7.00 - 9.00 mm without handle
deviate. More information available on request. 842.108 For 50 pin gauges
Diameter/mm Length/mm Price HUF ø 9.00 - 10.00 mm without handle
842.109 For 100 pin gauges
Pin gauge without handle:
0.06 - 0.09 1 30 ø 0.06 - 0.99 mm without handle
0.10 - 0.19 1 40 842.110 For 100 pin gauges
0.20 - 0.29 1 40
0.30 - 0.49 1 40 ø 1.00 - 3.00 mm without handle
0.50 - 0.99 1 40 842.111 For 100 pin gauges
1.00 - 2.99 70
3.00 - 4.00 70 ø 3.00 - 4.00 mm without handle
4.01 - 5.00 70 842.112 For 100 pin gauges
5.01 - 5.99 70
6.00 - 9.99 70 ø 4.00 - 7.00 mm without handle
10.00 - 11.99 70 842.113 For 100 pin gauges
12.00 - 13.99 70
14.00 - 15.99 70 ø 7.00 - 9.00 mm without handle
16.00 - 18.99 70 842.114 For 100 pin gauges
19.00 - 20.00 70
ø 9.00 - 10.00 mm without handle
Pin gauge with handle 2: 842.115 For 50 pin gauges
0.06 - 0.09 1 23
ø 0.06 - 2.00 mm with handle
842.116 For 50 pin gauges
ø 2.00 - 3.50 mm with handle
842.117 For 50 pin gauges
ø 3.50 - 6.00 mm with handle
842.118 For 50 pin gauges
ø 6.00 - 9.00 mm with handle
842.119 For 50 pin gauges
ø 9.00 - 10.00 mm with handle
0.10 - 0.19 1 33 Plastic tubes for pin gauges:
0.20 - 0.29 1 33 833.066 1 Without handle up to ø 0.99 mm
0.30 - 0.49 1 33 838.224 2 Without handle ø 1.00 - 7.00 mm
0.50 - 0.99 1 33 838.089 With handle up to ø 0.99 mm
1.00 - 2.99 62 1 Standard supplied for cases: 842.103 and 842.109.
3.00 - 4.00 62 2 Standard supplied for cases: 842.104 and 842.110.
4.01 - 5.00 62
5.01 - 5.99 62
6.00 - 10.00 62
C12.204.HOD.20250410
1 Delivered in a plastic transport case.
2 The length here indicates the measuring length and
not the total length of the pin gauges.
