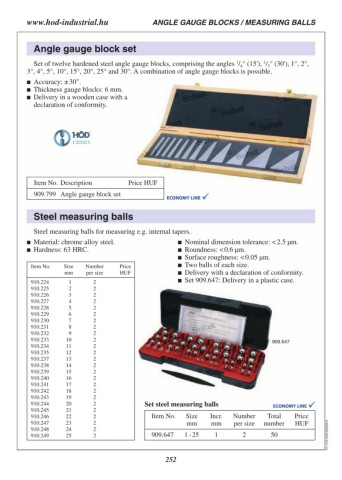

www.hod-industrial.hu ANGLE GAUGE BLOCKS / MEASURING BALLS

Angle gauge block set

Set of twelve hardened steel angle gauge blocks, comprising the angles 1/4° (15'), 1/2° (30'), 1°, 2°,
3°, 4°, 5°, 10°, 15°, 20°, 25° and 30°. A combination of angle gauge blocks is possible.
 Accuracy: ± 30".
 Thickness gauge blocks: 6 mm.
 Delivery in a wooden case with a

declaration of conformity.

Item No. Description Price HUF

909.799 Angle gauge block set

Steel measuring balls

Steel measuring balls for measuring e.g. internal tapers.

 Material: chrome alloy steel.  Nominal dimension tolerance: < 2.5 µm.
 Hardness: 63 HRC.  Roundness: < 0.6 µm.
 Surface roughness: < 0.05 µm.
Item No. Size Number Price  Two balls of each size.
mm per size HUF  Delivery with a declaration of conformity.
910.224  Set 909.647: Delivery in a plastic case.
910.225 1 2
910.226 2 2 909.647
910.227 3 2
910.228 4 2 Set steel measuring balls Price C11.212.HOD.20250410
910.229 5 2 Item No. Size Incr. Number Total HUF
910.230 6 2 mm mm per size number
910.231 7 2 909.647 1 - 25 1 2 50
910.232 8 2
910.233 9 2
910.234 10 2
910.235 11 2
910.237 12 2
910.238 13 2
910.239 14 2
910.240 15 2
910.241 16 2
910.242 17 2
910.243 18 2
910.244 19 2
910.245 20 2
910.246 21 2
910.247 22 2
910.248 23 2
910.249 24 2
25 2
