Page 217 - Schut Catalog

www.hod-industrial.hu PROTRACTORS

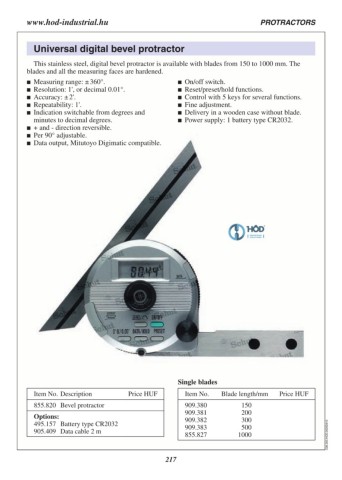

Universal digital bevel protractor

This stainless steel, digital bevel protractor is available with blades from 150 to 1000 mm. The
blades and all the measuring faces are hardened.

 Measuring range: ± 360°.  Control with 5 keys for several functions.
 Resolution: 1', or decimal 0.01°.  Fine adjustment.
 Accuracy: ± 2'.  Delivery in a wooden case with 150 mm
 Repeatability: 1'.
 Indication switchable from degrees and blade.
 Power supply: 1 battery type CR2032.
minutes to decimal degrees.  Also available in heavy duty type (855.805).
 + and - direction reversible.
 Per 90° adjustable.
 Data output, Mitutoyo Digimatic compatible.
 On/off switch.
 Reset/preset/hold functions.

855.812 855.813 855.815

855.805

Item No. Description Price HUF Single blades

855.820 Bevel protractor Item No. Blade length/mm Price HUF

Options: 909.380 150 C08.203.HOD.20250702
495.157 Battery type CR2032 909.381 200
855.812 Acute angle attachment 909.382 300
855.813 Stand 909.383 500
855.815 Height Gauge Holder 855.827 1000
905.409 Data cable 2 m

217
