www.hod-industrial.hu SURFACE PLATE STANDS

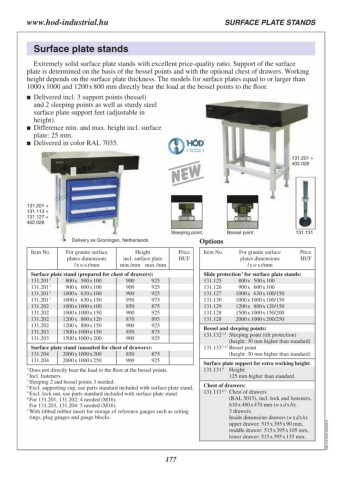

Surface plate stands
Extremely solid surface plate stands with excellent price-quality ratio. Support of the surface
plate is determined on the basis of the bessel points and with the optional chest of drawers. Working
height depends on the surface plate thickness. The models for surface plates equal to or larger than
1000 x 1000 and 1200 x 800 mm directly bear the load at the bessel points to the floor.
Delivered incl. 3 support points (bessel)
and 2 sleeping points as well as sturdy steel
surface plate support feet (adjustable in
height).
Difference min. and max. height incl. surface
plate: 25 mm.
Delivered in color RAL 7035.
131.201 +
402.028
131.201 +
131.113 +
131.127 +
402.028
Sleeping point. Bessel point. 131.131
Delivery ex Groningen, Netherlands Options
Item No. For granite surface Height Price Item No. For granite surface Price
HUF plates dimensions HUF
plates dimensions incl. surface plate
l x w x t/mm
l x w x t/mm min./mm max./mm
Surface plate stand (prepared for chest of drawers): Slide protection 2 for surface plate stands:
131.125 800 x 500 x 100
131.201 1 800 x 500 x 100 900 925 131.126 900 x 600 x 100
131.127 1000 x 630 x 100/150
131.201 1 900 x 600 x 100 900 925 131.130 1000 x 1000 x 100/150
131.129 1200 x 800 x 120/150
131.201 1 1000 x 630 x 100 900 925 131.128 1500 x 1000 x 150/200
131.128 2000 x 1000 x 200/250
131.201 1 1000 x 630 x 150 950 975
131.202 1000 x 1000 x 100 850 875
131.202 1000 x 1000 x 150 900 925
131.202 1200 x 800 x 120 870 895
131.202 1200 x 800 x 150 900 925 Bessel and sleeping points:
131.132 3,5 Sleeping point (tilt protection)
131.203 1500 x 1000 x 150 850 875
(height: 30 mm higher than standard)
131.203 1500 x 1000 x 200 900 925 131.133 3,4,5 Bessel point
Surface plate stand (unsuited for chest of drawers): (height: 30 mm higher than standard)
131.204 2000 x 1000 x 200 850 875
131.204 2000 x 1000 x 250 900 925 Surface plate support for extra working height:
131.131 6 Height:
1 Does not directly bear the load to the floor at the bessel points.
2 Incl. fasteners. 125 mm higher than standard.
3 Sleeping 2 and bessel points 3 needed.
4 Excl. supporting cup, use parts standard included with surface plate stand. Chest of drawers: C06.319.HOD.20250410
5 Excl. lock nut, use parts standard included with surface plate stand. 131.113 2,7 Chest of drawers
6 For 131.201, 131.202: 4 needed (M16).
For 131.203, 131.204: 5 needed (M16). (RAL 5015), incl. lock and fasteners,
7 With ribbed rubber insert for storage of reference gauges such as setting 610 x 480 x 470 mm (w x d x h);
rings, plug gauges and gauge blocks. 3 drawers.
Inside dimensions drawers (w x d x h):
upper drawer: 515 x 395 x 90 mm,
middle drawer: 515 x 395 x 105 mm,
lower drawer: 515 x 395 x 135 mm.
