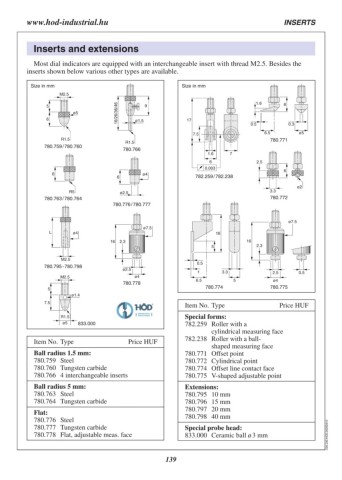

Inserts and extensions

Most dial indicators are equipped with an interchangeable insert with thread M2.5. Besides the
inserts shown below various other types are available.

Size in mm 916/26/36/46 Size in mm 1.6 6
M2.5 ø1.5
17 0.5 0.3
5 R1.5 7.5
ø5 780.766 6.5 ø5
1.6 7 780.771
6 6 ø4 6
ø2.5 0.003 2.5
R1.5 782.259 / 782.238 6
780.759 / 780.760 780.776 / 780.777
3.3 ø2
6 780.772

R5
780.763 / 780.764

ø7.5

L ø4 ø7.5

16 2.3 16 16
5 2.3

M2.5 0.5
780.795 - 780.798
ø2.5 1 3.3 2.5 0.5
M2.5
ø4 6.5 5 ø4
5 780.778 780.774 780.775
ø1.4
Item No. Type Price HUF
7.5
Special forms:
R1.5 782.259 Roller with a
ø5 833.000
cylindrical measuring face
Item No. Type Price HUF 782.238 Roller with a ball-

Ball radius 1.5 mm: shaped measuring face
780.759 Steel 780.771 Offset point
780.760 Tungsten carbide 780.772 Cylindrical point
780.766 4 interchangeable inserts 780.774 Offset line contact face
780.775 V‑shaped adjustable point

Ball radius 5 mm: Extensions:
780.763 Steel 780.795 10 mm
780.764 Tungsten carbide 780.796 15 mm
780.797 20 mm
Flat: 780.798 40 mm C05.230.HOD.20250410
780.776 Steel
780.777 Tungsten carbide Special probe head:
780.778 Flat, adjustable meas. face 833.000 Ceramic ball ø 3 mm
