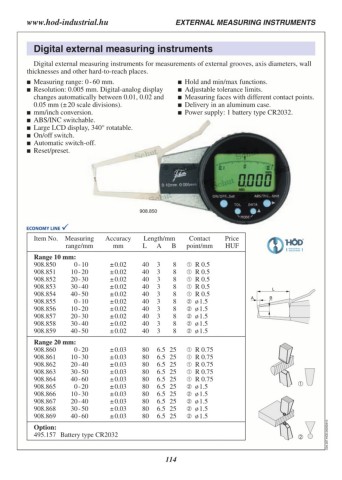

Page 114 - Schut Catalog
P. 114
www.hod-industrial.hu EXTERNAL MEASURING INSTRUMENTS
Digital external measuring instruments
Digital external measuring instruments for measurements of external grooves, axis diameters, wall
thicknesses and other hard‑to‑reach places.
Measuring range: 0 - 60 mm. Hold and min/max functions.
Resolution: 0.005 mm. Digital-analog display Adjustable tolerance limits.
Measuring faces with different contact points.
changes automatically between 0.01, 0.02 and Delivery in an aluminum case.
0.05 mm (± 20 scale divisions). Power supply: 1 battery type CR2032.
mm/inch conversion.
ABS/INC switchable.
Large LCD display, 340° rotatable.
On/off switch.
Automatic switch-off.
Reset/preset.
908.850
Item No. Measuring Accuracy Length/mm Contact Price
range/mm mm L A B point/mm HUF
Range 10 mm: ± 0.02 40 3 8 R 0.5 A L
908.850 0 - 10 ± 0.02 40 3 8 R 0.5 B
908.851 10 - 20 ± 0.02 40 3 8 R 0.5
908.852 20 - 30 ± 0.02 40 3 8 R 0.5
908.853 30 - 40 ± 0.02 40 3 8 R 0.5
908.854 40 - 50 ± 0.02 40 3 8 ø 1.5
908.855 0 - 10 ± 0.02 40 3 8 ø 1.5
908.856 10 - 20 ± 0.02 40 3 8 ø 1.5
908.857 20 - 30 ± 0.02 40 3 8 ø 1.5
908.858 30 - 40 ± 0.02 40 3 8 ø 1.5
908.859 40 - 50
Range 20 mm: ± 0.03 80 6.5 25 R 0.75
908.860 0 - 20 ± 0.03 80 6.5 25 R 0.75
908.861 10 - 30 ± 0.03 80 6.5 25 R 0.75
908.862 20 - 40 ± 0.03 80 6.5 25 R 0.75
908.863 30 - 50 ± 0.03 80 6.5 25 R 0.75
908.864 40 - 60 ± 0.03 80 6.5 25 ø 1.5
908.865 0 - 20 ± 0.03 80 6.5 25 ø 1.5
908.866 10 - 30 ± 0.03 80 6.5 25 ø 1.5
908.867 20 - 40 ± 0.03 80 6.5 25 ø 1.5
908.868 30 - 50 ± 0.03 80 6.5 25 ø 1.5
908.869 40 - 60
Option: C04.307.HOD.20250410
495.157 Battery type CR2032
