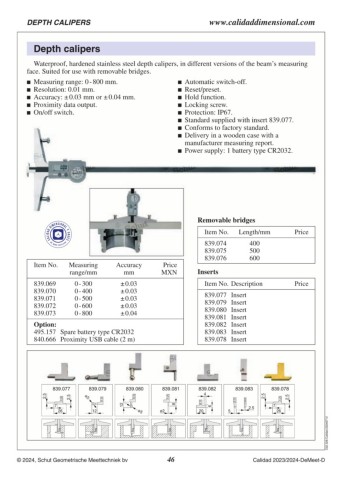

Page 46 - Schut Catalog
P. 46
DEPTH CALIPERS www.calidaddimensional.com
Depth calipers
Waterproof, hardened stainless steel depth calipers, in different versions of the beam’s measuring
face. Suited for use with removable bridges.
Measuring range: 0 - 800 mm. Automatic switch-off.
Resolution: 0.01 mm. Reset/preset.
Accuracy: ± 0.03 mm or ± 0.04 mm. Hold function.
Proximity data output. Locking screw.
On/off switch. Protection: IP67.
Standard supplied with insert 839.077.
Conforms to factory standard.
Delivery in a wooden case with a
manufacturer measuring report.
Power supply: 1 battery type CR2032.
Removable bridges
Item No. Length/mm Price
Price
Item No. Measuring Accuracy Price 839.074 400
range/mm mm MXN 839.075 500
839.076 600
Inserts
839.069 0 - 300 ± 0.03 Item No. Description
839.070 0 - 400 ± 0.03 839.077 Insert
839.071 0 - 500 ± 0.03 839.079 Insert
839.072 0 - 600 ± 0.03 839.080 Insert
839.073 0 - 800 ± 0.04 839.081 Insert
839.082 Insert
Option: 839.083 Insert
495.157 Spare battery type CR2032 839.078 Insert
840.666 Proximity USB cable (2 m)
839.077 839.079 839.080 839.081 839.082 839.083 839.078
12 4 5 2.5
2.57 ø5 7
2.526 20 26
12ø5 ø2
8
6
2.5
2.5
