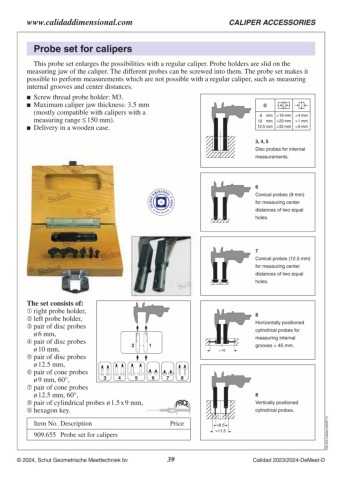

Probe set for calipers
This probe set enlarges the possibilities with a regular caliper. Probe holders are slid on the
measuring jaw of the caliper. The different probes can be screwed into them. The probe set makes it
possible to perform measurements which are not possible with a regular caliper, such as measuring
internal grooves and center distances.
Screw thread probe holder: M3. ø
Maximum caliper jaw thickness: 3.5 mm
6 mm > 16 mm > 4 mm
(mostly compatible with calipers with a 10 mm > 20 mm > 1 mm
measuring range ≤ 150 mm). 12.5 mm > 22 mm > 0 mm
Delivery in a wooden case.
3, 4, 5
Disc probes for internal
measurements.
6
Conical probes (9 mm)
for measuring center
distances of two equal
holes.
The set consists of: 7
right probe holder, Conical probes (12.5 mm)
left probe holder, for measuring center
pair of disc probes distances of two equal
ø 6 mm, holes.
pair of disc probes
ø 10 mm, 21 8
Horizontally positioned
cylindrical probes for
measuring internal
grooves > 45 mm.
pair of disc probes
ø 12.5 mm,
pair of cone probes
ø 9 mm, 60°, 34 5 6 78
pair of cone probes Price
ø 12.5 mm, 60°,
pair of cylindrical probes ø 1.5 x 9 mm, 8
hexagon key. Vertically positioned
cylindrical probes.
Item No. Description >8.5 C02.225.Calidad.20240712
909.655 Probe set for calipers >11.5 Calidad 2023/2024-DeMeet-D
