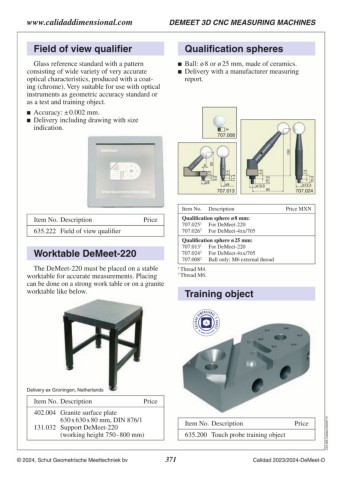

www.calidaddimensional.com DEMEET 3D CNC MEASURING MACHINES
Field of view qualifier Qualification spheres
Glass reference standard with a pattern Ball: ø 8 or ø 25 mm, made of ceramics.
consisting of wide variety of very accurate Delivery with a manufacturer measuring
optical characteristics, produced with a coat‑
ing (chrome). Very suitable for use with optical report.
instruments as geometric accuracy standard or
as a test and training object. 707.008
Accuracy: ± 0.002 mm. 3.9 50
Delivery including drawing with size 9.5
indication. 5.4 8
11.4
6
5.9
16.3
100
7.5
15.5
ø8 ø8 ø12.5
ø12.5
707.013 65 707.024
Item No. Description Price MXN
Item No. Description Price Qualification sphere ø 8 mm:
635.222 Field of view qualifier 707.0251 For DeMeet-220
707.0262 For DeMeet-4xx/705
Worktable DeMeet‑220
Qualification sphere ø 25 mm:
The DeMeet‑220 must be placed on a stable 707.0131 For DeMeet-220
worktable for accurate measurements. Placing 707.0242 For DeMeet-4xx/705
can be done on a strong work table or on a granite 707.0082 Ball only; M6 external thread
worktable like below.
1 Thread M4.
2 Thread M6.
Training object
Delivery ex Groningen, Netherlands
Item No. Description Price
402.004 Granite surface plate Item No. Description Price C23.305.Calidad.20240712
630 x 630 x 80 mm, DIN 876/1
635.200 Touch probe training object
131.032 Support DeMeet‑220
(working height 750 - 800 mm)
