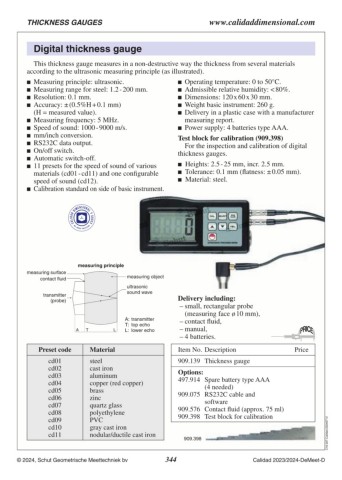

Page 344 - Schut Catalog

THICKNESS GAUGES www.calidaddimensional.com

Digital thickness gauge

This thickness gauge measures in a non-destructive way the thickness from several materials
according to the ultrasonic measuring principle (as illustrated).

 Measuring principle: ultrasonic.  Operating temperature: 0 to 50°C.
 Measuring range for steel: 1.2 - 200 mm.  Admissible relative humidity: < 80%.
 Resolution: 0.1 mm.  Dimensions: 120 x 60 x 30 mm.
 Accuracy: ± (0.5%H + 0.1 mm)  Weight basic instrument: 260 g.
 Delivery in a plastic case with a manufacturer
(H = measured value).
 Measuring frequency: 5 MHz. measuring report.
 Speed of sound: 1000 - 9000 m/s.  Power supply: 4 batteries type AAA.
 mm/inch conversion. Test block for calibration (909.398)
 RS232C data output.
 On/off switch. For the inspection and calibration of digital
 Automatic switch-off. thickness gauges.
 11 presets for the speed of sound of various  Heights: 2.5 - 25 mm, incr. 2.5 mm.
 Tolerance: 0.1 mm (flatness: ± 0.05 mm).
materials (cd01 - cd11) and one configurable  Material: steel.
speed of sound (cd12).
 Calibration standard on side of basic instrument.

measuring surface measuring principle Delivery including:
contact fluid measuring object – small, rectangular probe
ultrasonic
transmitter sound wave (measuring face ø 10 mm),
(probe) – contact fluid,
– manual,
AT A: transmitter – 4 batteries.
T: top echo
L L: lower echo Item No. Description
909.139 Thickness gauge
Preset code Material Options: Price
cd01 steel 497.914 Spare battery type AAA
cd02 cast iron C18.307.Calidad.20240712
cd03 aluminum (4 needed)
cd04 copper (red copper) 909.075 RS232C cable and
cd05 brass
cd06 zinc software
cd07 quartz glass 909.576 Contact fluid (approx. 75 ml)
cd08 polyethylene 909.398 Test block for calibration
cd09 PVC
cd10 gray cast iron 909.398
cd11 nodular/ductile cast iron
