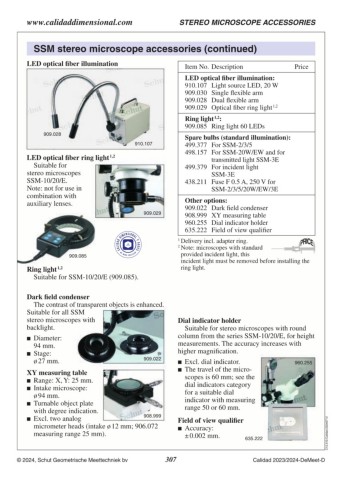

Page 307 - Schut Catalog

www.calidaddimensional.com STEREO MICROSCOPE ACCESSORIES

SSM stereo microscope accessories (continued)

LED optical fiber illumination Item No. Description Price

LED optical fiber illumination:
910.107 Light source LED, 20 W
909.030 Single flexible arm
909.028 Dual flexible arm
909.029 Optical fiber ring light 1,2

Ring light 1,2:
909.085 Ring light 60 LEDs

909.028 910.107 Spare bulbs (standard illumination):
909.029 499.377 For SSM‑2/3/5
LED optical fiber ring light 1,2 498.157 For SSM‑20W/EW and for
Suitable for
transmitted light SSM‑3E
stereo microscopes 499.379 For incident light
SSM‑10/20/E.
Note: not for use in SSM‑3E
combination with 438.211 Fuse F 0.5 A, 250 V for
auxiliary lenses.
SSM‑2/3/5/20W/EW/3E

Other options:
909.022 Dark field condenser
908.999 XY measuring table
960.255 Dial indicator holder
635.222 Field of view qualifier

909.085 1 Delivery incl. adapter ring.
2 Note: microscopes with standard
Ring light 1,2 provided incident light, this
Suitable for SSM‑10/20/E (909.085). incident light must be removed before installing the
ring light.

Dark field condenser Dial indicator holder
The contrast of transparent objects is enhanced. Suitable for stereo microscopes with round

Suitable for all SSM column from the series SSM‑10/20/E, for height
stereo microscopes with measurements. The accuracy increases with
backlight. higher magnification.

 Diameter: 909.022  Excl. dial indicator. 960.255
94 mm.  The travel of the micro­

 Stage: scopes is 60 mm; see the
ø 27 mm. dial indicators category
for a suitable dial
XY measuring table indicator with measuring
 Range: X, Y: 25 mm. range 50 or 60 mm.
 Intake microscope:
ø 94 mm.
 Turnable object plate
with degree indication.
 Excl. two analog 908.999 Field of view qualifier C13.310.Calidad.20240712

micrometer heads (intake ø 12 mm; 906.072  Accuracy:
measuring range 25 mm).
± 0.002 mm. 635.222
