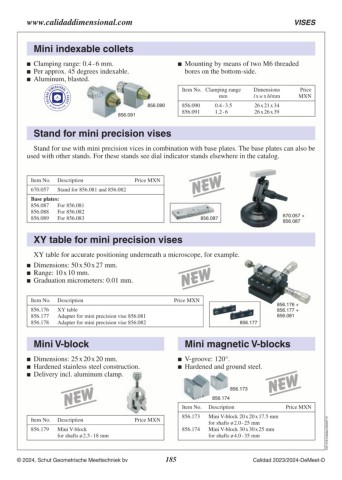

Mini indexable collets Mounting by means of two M6 threaded
bores on the bottom-side.
Clamping range: 0.4 - 6 mm.
Per approx. 45 degrees indexable. Item No. Clamping range Dimensions Price
Aluminum, blasted. mm l x w x h/mm MXN
856.091 856.090 856.090 0.4 - 3.5 26 x 21 x 34
856.091 1.2 - 6 26 x 26 x 39
Stand for mini precision vises
Stand for use with mini precision vices in combination with base plates. The base plates can also be
used with other stands. For these stands see dial indicator stands elsewhere in the catalog.
Item No. Description Price MXN
670.057 Stand for 856.081 and 856.082 856.087 670.057 +
856.087
Base plates:
856.087 For 856.081
856.088 For 856.082
856.089 For 856.083
XY table for mini precision vises
XY table for accurate positioning underneath a microscope, for example.
Dimensions: 50 x 50 x 27 mm.
Range: 10 x 10 mm.
Graduation micrometers: 0.01 mm.
Item No. Description Price MXN 856.176 +
856.177 +
856.176 XY table 856.081
856.177 Adapter for mini precision vise 856.081
856.178 Adapter for mini precision vise 856.082 856.177
Mini V-block Mini magnetic V-blocks
Dimensions: 25 x 20 x 20 mm. V‑groove: 120°.
Hardened stainless steel construction. Hardened and ground steel.
Delivery incl. aluminum clamp.
856.173
856.174
Item No. Description Price MXN
856.173
Item No. Description Price MXN Mini V-block 20 x 20 x 17.5 mm C07.319.Calidad.20240712
856.179 856.174 for shafts ø 2.0 - 25 mm
Mini V-block Mini V-block 30 x 30 x 25 mm
for shafts ø 2.5 - 18 mm for shafts ø 4.0 - 35 mm
