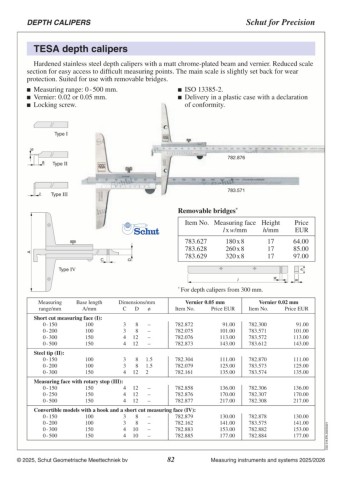

DEPTH CALIPERS Schut for Precision

TESA depth calipers

Hardened stainless steel depth calipers with a matt chrome-plated beam and vernier. Reduced scale
section for easy access to difficult measuring points. The main scale is slightly set back for wear
protection. Suited for use with removable bridges.

 Measuring range: 0 - 500 mm.  ISO 13385-2.
 Vernier: 0.02 or 0.05 mm.  Delivery in a plastic case with a declaration
 Locking screw.
of conformity.

Type I 782.876

ø

8 Type II

2 Type III 783.571

Removable bridges*

Item No. Measuring face Height Price
l x w/mm h/mm EUR

783.627 180 x 8 17 70.00
783.628 260 x 8 17 94.00
783.629 320 x 8 17 107.00
A C
D
hType IV

C02.316.EN.20260120lww

* For depth calipers from 300 mm.

Measuring Base length Dimensions/mm Vernier 0.05 mm Vernier 0.02 mm
range/mm
A/mm C D ø Item No. Price EUR Item No. Price EUR

Short cut measuring face (I):

0 - 150 100 3 8 – 782.872 100.00 782.300 100.00
782.075 111.00 783.571 111.00
0 - 200 100 3 8 – 782.076 124.00 783.572 124.00
782.873 157.00 783.612 157.00
0 - 300 150 4 12 –

0 - 500 150 4 12 –

Steel tip (II): 100 3 8 1.5 782.304 122.00 782.870 122.00
0 - 150 100 3 8 1.5 782.079 138.00 783.573 138.00
0 - 200 150 4 12 2 782.161 149.00 783.574 149.00
0 - 300

Measuring face with rotary stop (III):

0 - 150 150 4 12 – 782.858 150.00 782.306 150.00
782.876 187.00 782.307 187.00
0 - 250 150 4 12 – 782.877 239.00 782.308 239.00

0 - 500 150 4 12 –

Convertible models with a hook and a short cut measuring face (IV):

0 - 150 100 3 8 – 782.879 143.00 782.878 143.00
155.00 783.575 155.00
0 - 200 100 3 8 – 782.162 168.00 782.882 168.00
195.00 782.884 195.00
0 - 300 150 4 10 – 782.883

0 - 500 150 4 10 – 782.885
