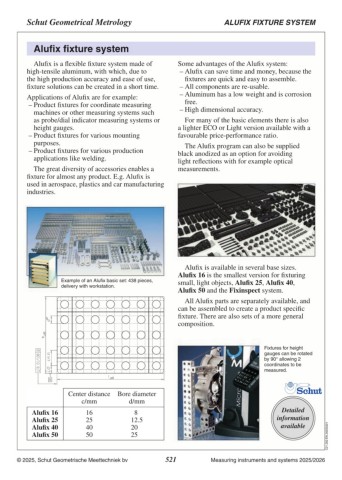

Page 521 - Schut Catalog

Schut Geometrical Metrology ALUFIX FIXTURE SYSTEM

Alufix fixture system Some advantages of the Alufix system:
– Alufix can save time and money, because the
Alufix is a flexible fixture system made of
high-tensile aluminum, with which, due to fixtures are quick and easy to assemble.
the high production accuracy and ease of use, – All components are re-usable.
fixture solutions can be created in a short time. – Aluminum has a low weight and is corrosion
Applications of Alufix are for example:
– Product fixtures for coordinate measuring free.
– High dimensional accuracy.
machines or other measuring systems such
as probe/dial indicator measuring systems or For many of the basic elements there is also
height gauges. a lighter ECO or Light version available with a
– Product fixtures for various mounting favourable price-performance ratio.
purposes.
– Product fixtures for various production The Alufix program can also be supplied
applications like welding. black anodized as an option for avoiding
The great diversity of accessories enables a light reflections with for example optical
fixture for almost any product. E.g. Alufix is measurements.
used in aero­space, plastics and car manufacturing
industries.

Example of an Alufix basic set: 438 pieces, Alufix is available in several base sizes.
delivery with workstation. Alufix 16 is the smallest version for fixturing
small, light objects, Alufix 25, Alufix 40,
Alufix 50 and the Fixinspect system.

All Alufix parts are separately available, and
can be assembled to create a product specific
fixture. There are also sets of a more general
composition.

Fixtures for height
gauges can be rotated
by 90° allowing 2
coordinates to be
measured.

Center distance Bore diameter
Alufix 16 c/mm d/mm
Alufix 25
Alufix 40 16 8 Detailed C21.202.EN.20250321
Alufix 50 25 12.5 information
40 20
50 25 available
