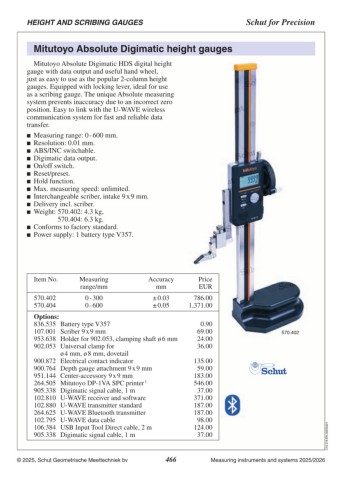

P. 466
HEIGHT AND SCRIBING GAUGES Schut for Precision
Mitutoyo Absolute Digimatic height gauges
Mitutoyo Absolute Digimatic HDS digital height
gauge with data output and useful hand wheel,
just as easy to use as the popular 2-column height
gauges. Equipped with locking lever, ideal for use
as a scribing gauge. The unique Absolute measuring
system prevents inaccuracy due to an incorrect zero
position. Easy to link with the U-WAVE wireless
communication system for fast and reliable data
transfer.
Measuring range: 0 - 600 mm.
Resolution: 0.01 mm.
ABS/INC switchable.
Digimatic data output.
On/off switch.
Reset/preset.
Hold function.
Max. measuring speed: unlimited.
Interchangeable scriber, intake 9 x 9 mm.
Delivery incl. scriber.
Weight: 570.402: 4.3 kg,
570.404: 6.3 kg.
Conforms to factory standard.
Power supply: 1 battery type V357.
Item No. Measuring Accuracy Price
range/mm mm EUR
810.00
570.402 0 - 300 ± 0.03 1,424.00
570.404 0 - 600 ± 0.05
0.90
Options: 72.00 570.402
836.535 Battery type V357 14.80
107.001 Scriber 9 x 9 mm 38.00 C16.316.EN.20260702
953.638 Holder for 902.053, clamping shaft ø 6 mm 140.00
902.053 Universal clamp for 63.00
583.00
ø 4 mm, ø 8 mm, dovetail 39.00
900.872 Electrical contact indicator 380.00
900.764 Depth gauge attachment 9 x 9 mm 189.00
951.144 Center-accessory 9 x 9 mm 197.00
264.506 Mitutoyo DP‑1VA SPC printer 1 98.00
905.338 Digimatic signal cable, 1 m 128.00
102.810 U-WAVE receiver and software 39.00
102.880 U-WAVE transmitter standard
264.625 U-WAVE Bluetooth transmitter
102.795 U-WAVE data cable
106.384 USB Input Tool Direct cable, 2 m
905.338 Digimatic signal cable, 1 m
1 Incl. AC adapter (6 Vdc) and a roll of printing paper.
