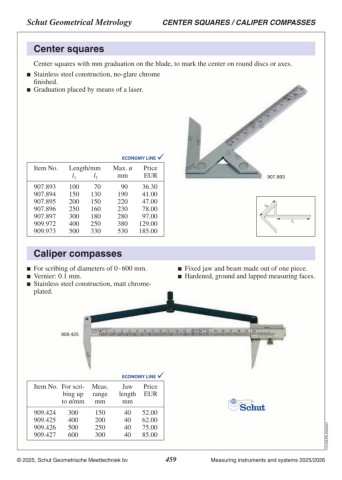

P. 459
Schut Geometrical Metrology CENTER SQUARES / CALIPER COMPASSES
Center squares
Center squares with mm graduation on the blade, to mark the center on round discs or axes.
Stainless steel construction, no-glare chrome
finished.
Graduation placed by means of a laser.
Item No. Length/mm Max. ø Price
l1 l2 mm EUR
907.893
907.893 100 70 90 37.10 l2
907.894 150 130 190 42.00
907.895 200 150 220 48.00 l1
907.896 250 160 230 80.00
907.897 300 180 280 99.00 Fixed jaw and beam made out of one piece.
909.972 400 250 380 132.00 Hardened, ground and lapped measuring faces.
909.973 500 330 530 189.00
Caliper compasses
For scribing of diameters of 0 - 600 mm.
Vernier: 0.1 mm.
Stainless steel construction, matt chrome-
plated.
909.425
Item No. For scri- Meas. Jaw Price
bing up range length EUR
to ø/mm mm mm
909.424 300 150 40 53.00 C15.205.EN.20260702
909.425 400 200 40 64.00
909.426 500 250 40 76.00
909.427 600 300 40 87.00
© 2026, Schut Geometrische Meettechniek bv 459 Measuring instruments and systems 2025/2026
