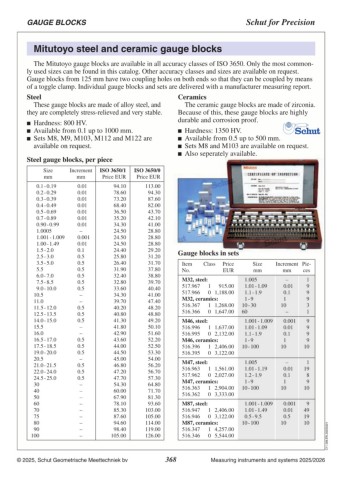

P. 368
GAUGE BLOCKS Schut for Precision
Mitutoyo steel and ceramic gauge blocks
The Mitutoyo gauge blocks are available in all accuracy classes of ISO 3650. Only the most common
ly used sizes can be found in this catalog. Other accuracy classes and sizes are available on request.
Gauge blocks from 125 mm have two coupling holes on both ends so that they can be coupled by means
of a toggle clamp. Individual gauge blocks and sets are delivered with a manufacturer measuring report.
Steel Ceramics
These gauge blocks are made of alloy steel, and The ceramic gauge blocks are made of zirconia.
they are completely stress-relieved and very stable. Because of this, these gauge blocks are highly
Hardness: 800 HV. durable and corrosion proof.
Available from 0.1 up to 1000 mm. Hardness: 1350 HV.
Sets M8, M9, M103, M112 and M122 are Available from 0.5 up to 500 mm.
Sets M8 and M103 are available on request.
available on request. Also seperately available.
Steel gauge blocks, per piece
Size Increment ISO 3650/1 ISO 3650/0
mm mm Price EUR Price EUR
0.1 - 0.19 0.01 98.90 119.00 Gauge blocks in sets
0.2 - 0.29 0.01 82.40 99.10
0.3 - 0.39 0.01 76.80 91.90 Item Class Price Size Increment Pie-
0.4 - 0.49 0.01 71.70 86.00 No. EUR mm mm ces
0.5 - 0.69 0.01 38.30 45.80
0.7 - 0.89 0.01 37.00 44.40 M32, steel: 1.005 – 1
0.90 - 0.99 0.01 35.90 42.90 517.967 1 961.00 1.01 - 1.09 0.01 9
1.0005 25.60 30.40 517.966 0 1,248.00 1.1 - 1.9 0.1 9
1.001 - 1.009 – 25.60 30.40 M32, ceramics: 1 - 9 1 9
1.00 - 1.49 0.001 25.60 30.40 516.367 1 1,334.00 10 - 30 10 3
1.5 - 2.0 0.01 25.30 30.60 516.366 0 1,730.00 60 – 1
2.5 - 3.0 27.10 32.80
3.5 - 5.0 0.1 27.70 33.30 M46, steel: 1.001 - 1.009 0.001 9
5.5 0.5 33.50 39.70 516.996 1 1,723.00
6.0 - 7.0 0.5 34.10 40.70 516.995 0 2,238.00 1.01 - 1.09 0.01 9
7.5 - 8.5 0.5 34.60 41.50 M46, ceramics:
9.0 - 10.0 0.5 35.20 42.40 516.396 1 2,525.00 1.1 - 1.9 0.1 9
10.5 0.5 35.90 42.90 516.395 0 3,281.00
11.0 0.5 41.50 49.60 1 - 9 1 9
11.5 - 12.0 – 42.30 50.60
12.5 - 13.5 – 42.80 51.20 10 - 100 10 10
14.0 - 15.0 0.5 43.40 51.60
15.5 0.5 43.90 52.50
16.0 0.5 45.20 54.10
16.5 - 17.0 – 45.60 54.90 M47, steel: 1.005 – 1
17.5 - 18.5 – 46.40 55.20 516.963 1 1,637.00 1.01 - 1.19 0.01 19
19.0 - 20.0 0.5 46.80 55.90 517.962 0 2,129.00 1.2 - 1.9 0.1 8
20.5 0.5 47.20 56.80 M47, ceramics: 1 - 9 1 9
21.0 - 21.5 0.5 49.00 58.90 516.363 1 3,050.00 10 - 100 10 10
22.0 - 24.0 – 49.50 59.40 516.362 0 3,498.00
24.5 - 25.0 0.5 50.30 60.40
30 0.5 57.20 68.20 M87, steel: 1.001 - 1.009 0.001 9
40 0.5 62.90 75.20 516.947 1 2,525.00
50 – 71.20 85.30 516.946 0 3,281.00 1.01 - 1.49 0.01 49
60 – 82.00 98.30 M87, ceramics:
70 – 89.60 108.00 516.347 1 4,488.00 0.5 - 9.5 0.5 19
75 – 91.90 110.00 516.346 0 5,808.00
80 – 99.20 120.00 10 - 100 10 10 C11.306.EN.20260702
90 – 104.00 125.00
100 – 110.00 132.00
–
–
