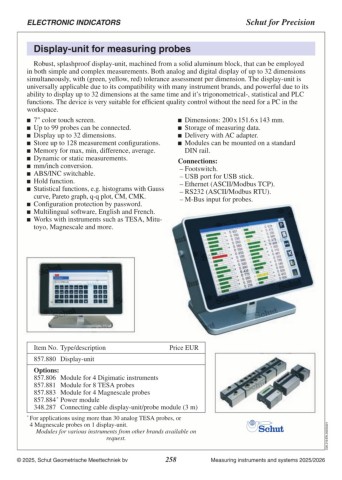

ELECTRONIC INDICATORS Schut for Precision

Display-unit for measuring probes

Robust, splashproof display-unit, machined from a solid aluminum block, that can be employed
in both simple and complex measurements. Both analog and digital display of up to 32 dimensions
simultaneously, with (green, yellow, red) tolerance assessment per dimension. The display-unit is
universally applicable due to its compatibility with many instrument brands, and powerful due to its
ability to display up to 32 dimensions at the same time and it’s trigonometrical-, statistical and PLC
functions. The device is very suitable for efficient quality control without the need for a PC in the
workspace.

 7" color touch screen.  Dimensions: 200 x 151.6 x 143 mm.
 Up to 99 probes can be connected.  Storage of measuring data.
 Display up to 32 dimensions.  Modules can be mounted on a standard
 Store up to 128 measurement configurations.
 Memory for max, min, difference, average. DIN rail.
 Dynamic or static measurements. Connections:
 mm/inch conversion. – Footswitch.
 ABS/INC switchable. – USB port for USB stick.
 Hold function. – Ethernet (ASCII/Modbus TCP).
 Statistical functions, e.g. histograms with Gauss – RS232 (ASCII/Modbus RTU).
– M-Bus input for probes.
curve, Pareto graph, q-q plot, CM, CMK.
 Configuration protection by password.
 Multilingual software, English and French.
 Works with instruments such as TESA, Mitu-

toyo, Magnescale and more.

Item No. Type/description Price EUR

857.880 Display-unit

Options:
857.886 Power supply 24 Vdc (not supplied)
420.300 Adapter cable (not supplied)
857.806 Module for 4 Digimatic instruments
857.881 Module for 8 TESA probes
857.883 Module for 4 Magnescale probes
857.884 * Power module
348.287 Connecting cable display-unit/probe module (3 m)

* For applications using more than 30 analog TESA probes, or C05.319.EN.20260324
4 Magnescale probes on 1 display-unit.

Modules for various instruments from other brands available on
request.
