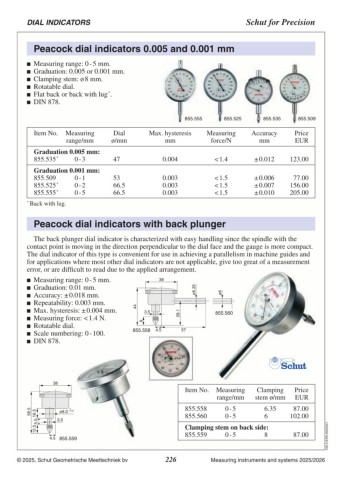

Page 226 - Schut Catalog

DIAL INDICATORS Schut for Precision

Peacock dial indicators 0.005 and 0.001 mm

 Measuring range: 0 - 5 mm.
 Graduation: 0.005 or 0.001 mm.
 Clamping stem: ø 8 mm.
 Rotatable dial.
 Flat back or back with lug *.
 DIN 878.

855.555 855.525 855.535 855.509

Item No. Measuring Dial Max. hysteresis Measuring Accuracy Price
range/mm ø/mm mm force/N mm EUR
47
Graduation 0.005 mm: 53 0.004 < 1.4 ± 0.012 118.00
855.535 * 0 - 3 66.5
Graduation 0.001 mm: 66.5 0.003 < 1.5 ± 0.006 74.00
855.509 0 - 1 0.003 < 1.5 ± 0.007 151.00
855.525 * 0 - 2 0.003 < 1.5 ± 0.010 197.00
855.555 * 0 - 5
* Back with lug.

Peacock dial indicators with back plunger

As the spindle is located at the rear of this Japanese-quality dial indicator, it is very user-friendly
for inspection work in areas where there is limited space for measuring. Thanks to its special internal
design this is a very compact dial indicator, suitable for example, for checking the parallelism of
machine guides and for applications where most other dial indicators cannot be used, give too large a
measurement error or are difficult to read due to the setup involved.

 Measuring range: 0 - 5 mm. 38 38
 Graduation: 0.01 mm.
 Accuracy: ± 0.018 mm. ø6.35 ø6
 Repeatability: 0.003 mm.
 Max. hysteresis: ± 0.004 mm. 44 44 28.1
 Measuring force: < 1.4 N. 9 9
 Rotatable dial.
 Scale numbering: 0 - 100. 28.1
 DIN 878. 3.5 3.5 855.560
57
855.558 4.5 547.5

38

Item No. Measuring Clamping Price
range/mm stem ø/mm EUR

58.5 ø8.0 0 855.558 0 - 5 6.35 84.00
12.5 5.5 16.5 0.03 855.560 0 - 5 6 98.00

3.5 C05.219.EN.20260722

4.5 855.559 Clamping stem on back side: 84.00
855.559 0 - 5 8
