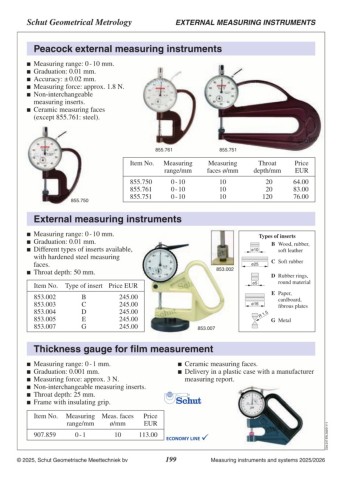

P. 199
Schut Geometrical Metrology EXTERNAL MEASURING INSTRUMENTS
Peacock external measuring instruments
External measuring instruments of Japanese quality, especially handy for measuring the thickness
of small parts.
Measuring range: 0 - 10 mm.
Graduation: 0.01 mm.
Accuracy: ± 0.02 mm.
Measuring force: approx. 1.8 N.
Non-interchangeable measuring inserts.
Ceramic measuring faces
(except 855.761: steel).
855.761 855.751
Item No. Measuring Measuring Throat Price
range/mm faces ø/mm depth/mm EUR
63.00
855.750 855.750 0 - 10 10 20 82.00
855.761 0 - 10 10 20 75.00
855.751 0 - 10 10 120
External measuring instruments
Measuring range: 0 - 10 mm. 853.002 Types of inserts
Graduation: 0.01 mm. 853.007 B Wood, rubber,
Different types of inserts available,
ø10 soft leather
with hardened steel measuring
faces. ø25 C Soft rubber
Throat depth: 50 mm.
D Rubber rings,
Item No. Type of insert Price EUR ø5 round material
853.002 B 274.00
853.003 C 274.00 E Paper,
853.004 D 274.00 cardboard,
853.005 E 274.00 ø16 fibrous plates
853.007 G 274.00 R 1.5 G Metal
Thickness gauge for film measurement
Measuring range: 0 - 1 mm. Ceramic measuring faces.
Graduation: 0.001 mm. Delivery in a plastic case with a manufacturer
Measuring force: approx. 3 N.
Non-interchangeable measuring inserts. measuring report.
Throat depth: 25 mm.
Frame with insulating grip.
Item No. Measuring Meas. faces Price
range/mm ø/mm EUR
C04.247.EN.20260722
907.859 0 - 1 10 117.00
© 2026, Schut Geometrische Meettechniek bv 199 Measuring instruments and systems 2025/2026
