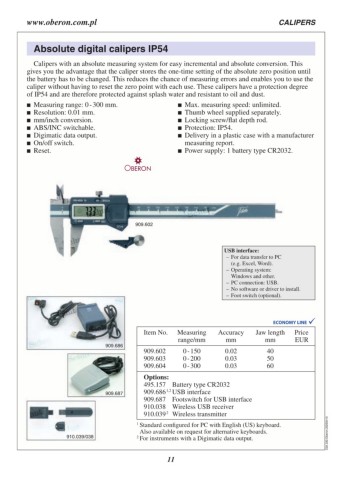

Page 11 - Schut Catalog

www.oberon.com.pl CALIPERS

Absolute digital calipers IP54

Calipers with an absolute measuring system for easy incremental and absolute conversion. This
gives you the advantage that the caliper stores the one-time setting of the absolute zero position until
the battery has to be changed. This reduces the chance of measuring errors and enables you to use the
caliper without having to reset the zero point with each use. These calipers have a protection degree
of IP54 and are therefore protected against splash water and resistant to oil and dust.

 Measuring range: 0 - 300 mm.  Max. measuring speed: unlimited.
 Resolution: 0.01 mm.  Thumb wheel supplied separately.
 mm/inch conversion.  Locking screw/flat depth rod.
 ABS/INC switchable.  Protection: IP54.
 Digimatic data output.  Delivery in a plastic case with a manufacturer
 On/off switch.
 Reset. measuring report.
 Power supply: 1 battery type CR2032.

909.602

USB interface:
– For data transfer to PC

(e.g. Excel, Word).
– Operating system:

Windows and other.
– PC connection: USB.
– No software or driver to install.
– Foot switch (optional).

Item No. Measuring Accuracy Jaw length Price
range/mm mm mm EUR
909.686
909.687 909.602 0 - 150 0.02 40
910.039/038 909.603 0 - 200 0.03 50
909.604 0 - 300 0.03 60

Options: C02.330.Oberon.20240418
495.157 Spare battery type CR2032
909.686 1,2 USB interface
909.687 Footswitch for USB interface
910.038 Wireless USB receiver
910.039 2 Wireless transmitter

1 Standard configured for PC with English (US) keyboard.
Also available on request for alternative keyboards.
2 For instruments with a Digimatic data output.
